Tensorflow.js

5 min read

index

Tensorflow.js :

https://m.youtube.com/playlist?list=PLOU2XLYxmsILr3HQpqjLAUkIPa5EaZiui

Narrow AI : trained to do specific thing like or even better than humans.

Machine Learning : An approach to AI where system learns from patterns.

Deep Learning : A technique to implement Machine Learning.

Reinforcement Learning : try to take actions to maximize its reward.

Transfer Learning : retrain existing models with new data.

How to train ML model :

  • Features and Attributes (color shape size weight position etc.)
  • Visualizing features
  • Choose an algorithm

TensoFlow.js :

Tensorflow.js is high level Layers API (like Keras(high level layers API for python)) which was build after deeplearn.js which was a low level mathematical Ops API which required more knowledge of ML and Math to run a model on browser.

Both Python and JavaScript code for Tensorflow.js are simply build on top of C++ core with the help of C/C++ bindings.

Models in Tensorflow.js can run on both client and server side. Client side our hardware have many options and execution time of ML model is based on hardware of client. While on server side hardware is fix and mostly of better quality and better scalability options

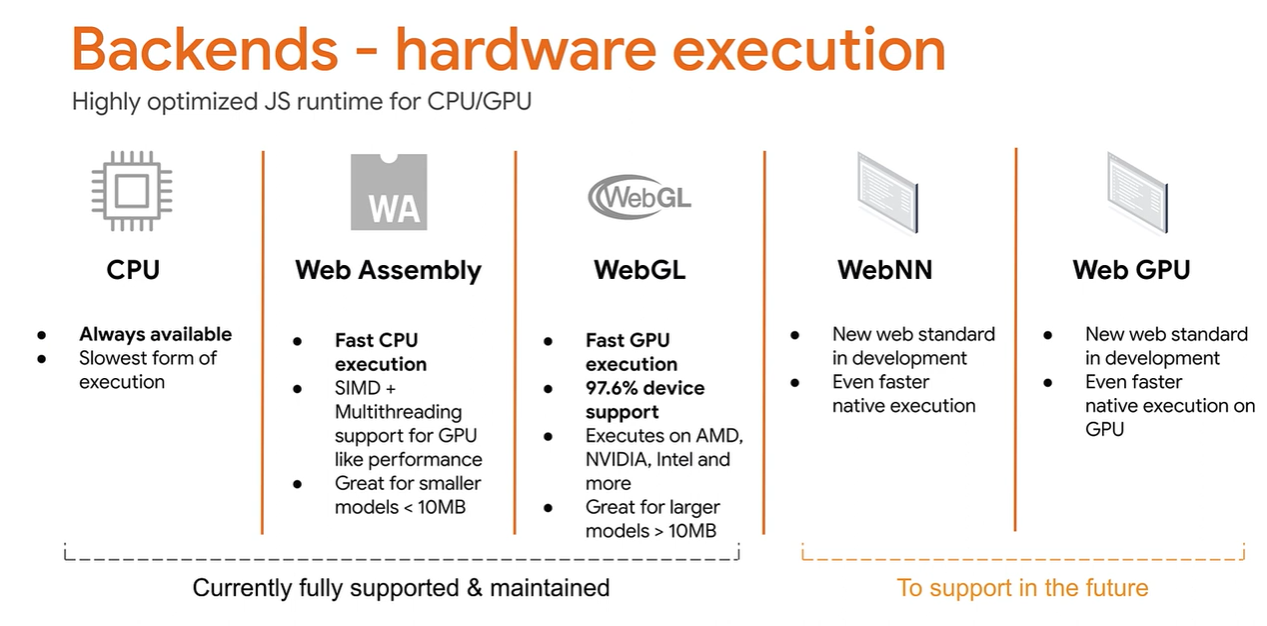

Client Side hardware options :

Tensors :

There are 6 dimensions / rank 6 tensors supported in Tensorflow.js if you have 4 values in an array then an vector is 4d but tensor is 1d with 4 values in it therefore tensor is of rank 1.

  • 0 dimensions / Rank 0 tensor :
    // vanilla js
let values = 6;

// tensorflow.js
let tensor = tf.scalar(6)
  • 1 dimension / Rank 1 tensor : (Example: a single coordinate in 3d space)
    // vanilla js
let values = [1,2,3];

// tensorflow.js
let tensor = tf.tensor1d([1,2,3]);
  • 2 dimension / Rank 2 tensor : (Example: a 2 dimensional grayscale image (0-255))
    // vanilla js
let values = [
	[2,0,67],
	[0,7,5],
	[9,5,25]
][]()

// tensorflow.js
let tensor = tf.tensor2d([
	[2,0,67],
	[0,7,5],
	[9,5,25]
]);
    The shape of the tensor for a grayscale image is typically : (Height, Width) = 0-255 value
    import matplotlib.pyplot as plt
import tensorflow as tf

# grayscale_image_tensor = tf.zeros((256, 256), dtype=tf.uint8);
# image_array = grayscale_image_tensor.numpy()

image_tensor = tf.random.uniform((256, 256), minval=0, maxval=255, dtype=tf.int32)
image_array = image_tensor.numpy()

# example image_array =
#   x --->
# y [[122, 169, 17, .... , 117],
# |  [....],
# |  [....],
# |  [....],
# v  ...]

plt.imshow(image_array, cmap='gray')
plt.axis('off')
plt.title("Random grayscale Image")
plt.show()
  • 3 dimension / Rank 3 tensor : (Example: a regular RGB image)
    // vanilla js
let values = [
	[
		[114 191 105], [198 1 153], [235 84 213] ... [223 193 167]
	],
	[
		[162 33 214], [203 75 221], [ 95 105 80] ... [115 62 254]
	],
	......
]

// tensorflow.js
let tensor = tf.tensor3d([
	[
		[114 191 105], [198 1 153], [235 84 213] ... [223 193 167]
	],
	[
		[162 33 214], [203 75 221], [ 95 105 80] ... [115 62 254]
	],
	......
]);
    Data Layout for RGB image, the tensor stores pixel data as:
    • image_tensor[h][w][0] → Red value of the pixel at height h and width w.
    • image_tensor[h][w][1] → Green value of the pixel at height h and width w.
    • image_tensor[h][w][2] → Blue value of the pixel at height h and width w.
    # import numpy as np
import matplotlib.pyplot as plt
import tensorflow as tf

# grayscale_image_tensor = tf.zeros((256, 256), dtype=tf.uint8);
# image_array = grayscale_image_tensor.numpy()

image_tensor = tf.random.uniform((256, 256, 3), minval=0, maxval=1)
image_array = image_tensor.numpy()
gray_array = tf.image.rgb_to_grayscale(image_array)

plt.figure(figsize=(8,8))

plt.subplot(1,2,1)
plt.imshow(gray_array, cmap='gray')
plt.axis('off')
plt.title("Random grayscale Image")

plt.subplot(1,2,2)
plt.imshow(image_array)
plt.axis('off')
plt.title("Random rgb Image")
plt.show()
    Load an image and convert it to grayscale:
    import tensorflow as tf
import matplotlib.pyplot as plt

image = tf.io.read_file('./test.png')
image = tf.image.decode_image(image, channels=3) # convert image to RGB
gray_image = tf.image.rgb_to_grayscale(image)

plt.figure(figsize=(12, 6))

# Original image
plt.subplot(1, 2, 1)
plt.imshow(image.numpy())
plt.title("Original Image")
plt.axis('off')

# Grayscale image
plt.subplot(1, 2, 2)
plt.imshow(gray_image.numpy(), cmap='gray')
plt.title("Grayscale Image")
plt.axis('off')

plt.tight_layout()
plt.show()
  • 4 dimension / Rank 4 tensor : (Example: a video where we have series of rank 3 tensor RGB images and 4th dimension is time)
  • 5 dimension / Rank 5 tensor : (Example: a batch of videos, Minecraft) In 3d games like Minecraft data is called voxel (volume element in a 3D space), where each voxel, so each voxel can have composition of ((r,g,b), x, y, z, time) as a rank 5 tensor
  • 6 dimension / Rank 6 tensor : (Example: a batch of voxel, like a batch a voxel with animations(6th dimension))

Attributes of a tensor :

  • Data Types (DType, dtype)
    • int8 === char stores 0-255
    • int16 === short stores 0-2^16 - 1
    • int32 === int stores 0-2^32 - 1
    • int64 === int stores 0-2^64 - 1
  • Shape Number of elements in each of dimension / axis Example: A Rank 3 with [4,5,8] will have 1st dimension will have 4 values in array 2nd dimension will have 5 values in array 3rd dimension will have 8 values in array
  • Rank / Axis Rank is simply the number of axis / dimension in an tensor
  • Size its the total number of elements an tensor can hold Example: a rank 3 tensor of [4,5,8] can hold 4 * 5 * 8 = 160 elements
